Customer-Facing bLoyal POS Snippet™️ for Korona

This article describes the steps required to configure your Korona account to be able to use the bLoyal Customer-Facing POS Snippet™️ on your Korona POS system(s).

Prerequisites: You will need to be running the Korona-recommended Java version. As of June 2023, this is the Azul 17 JDK FX, (please check with the Korona Support Team for the latest guidance). Below is the link where you can find this Java version. However, you should contact Korona for assistance in getting this installed.

https://www.azul.com/downloads/?version=java-17-lts&os=windows&architecture=x86-64-bit&package=jdk-fx#zulu

1) Set up the new bLoyal Customer-Facing POS Snippet external system calls.

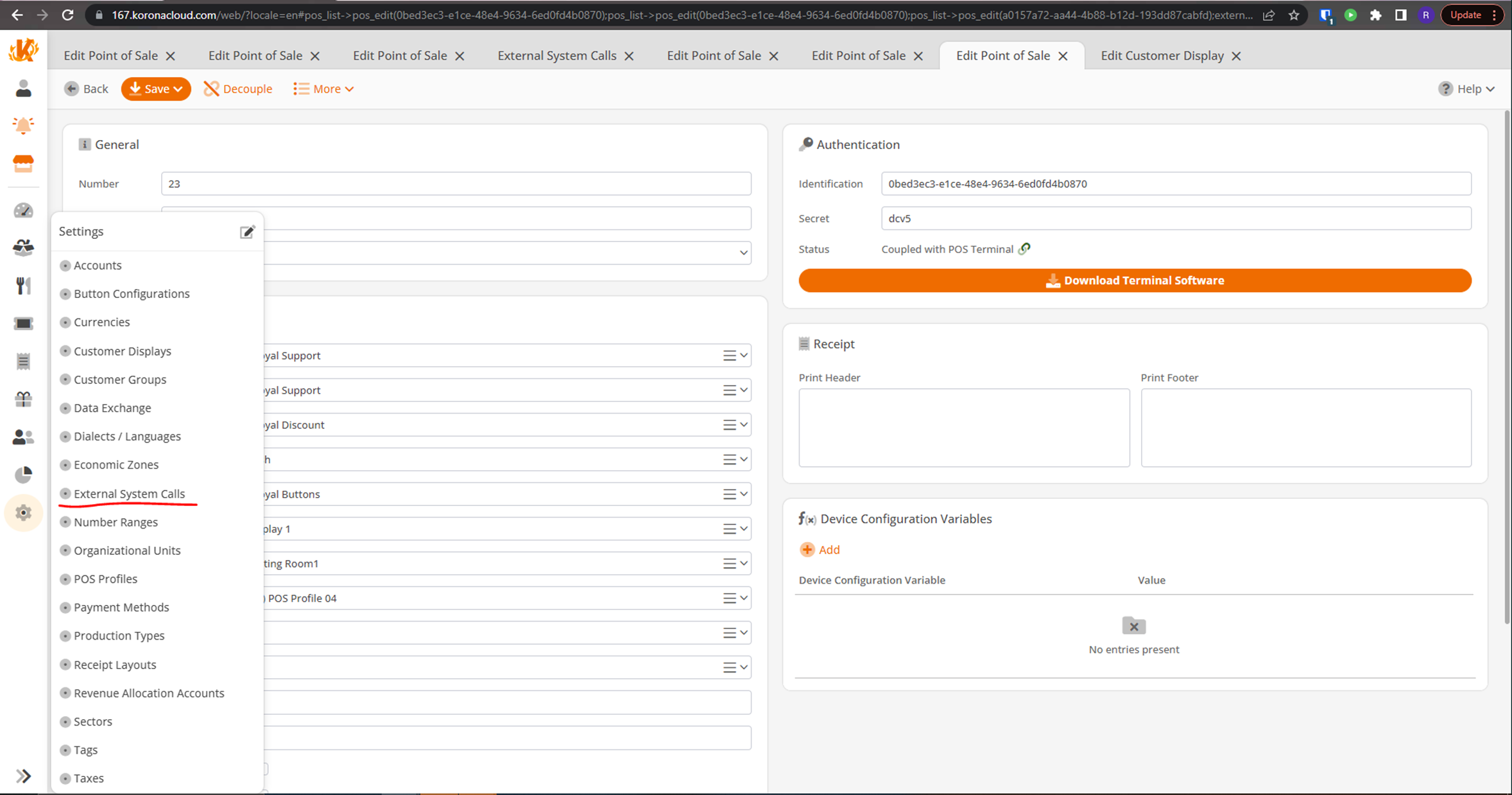

• Head to the external system calls page:

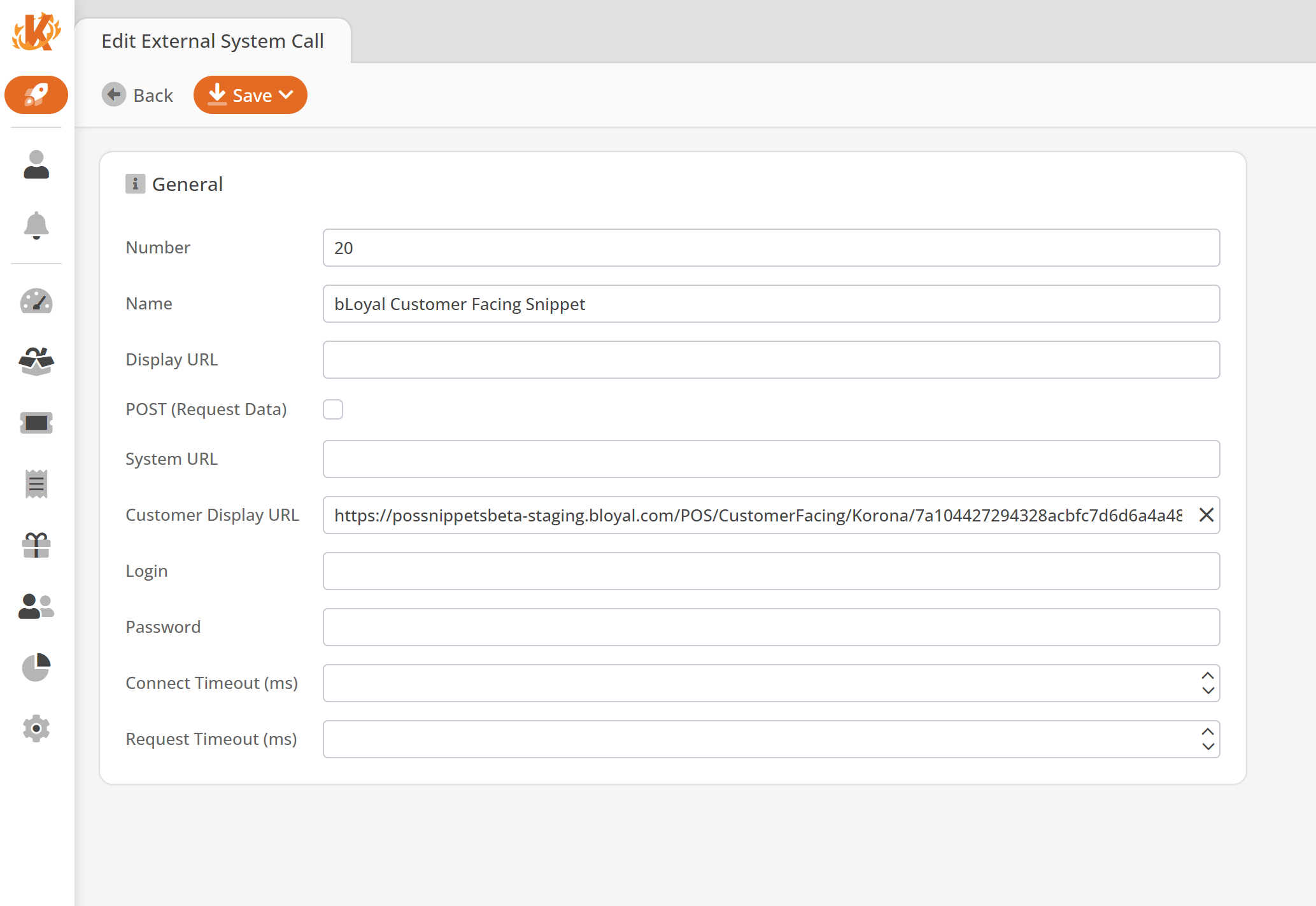

     1.1) Add a new external system call for launching the bLoyal Customer-Facing POS Snippet™️:

• Name: Launch bLoyal Customer-Facing Snippet
• Customer Display URL: Use the following structure for the URL:

https://{POSSnippetsUrl}/POS/CustomerFacing/Korona/{ClientAccessKey}-{LoginDomain}

• Contact our Support Team for assistance obtaining the following:
  • POS Snippets URL for your account.
  • Client Access Key which can be generated by our Support Team for you.
  • Login Domain is the same you use to log in to your Director Account (Company field).

Below is an example of a properly formatted end result URL. This particular URL is non-working and  is provided just as an example:

 https://POSSnippets2.bLoyal.io/POS/CustomerFacing/Korona/28343432b58923901c39f638f4da9c35fd8dcadef24f7fc2e8e23668682fffcc9b23ea5556deff89ea0845cb-MyCompany

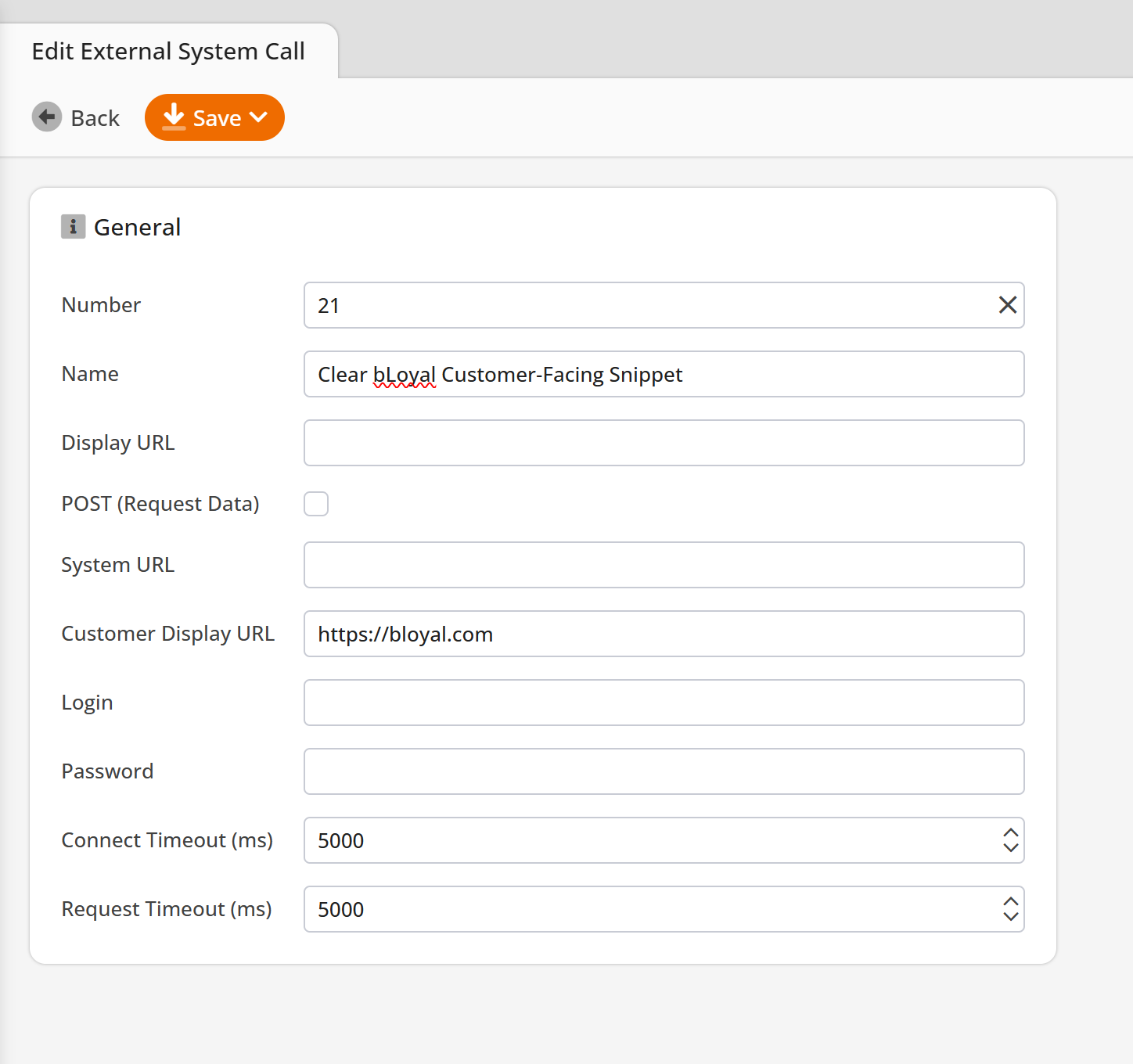

     1.2) Add another system call for clearing the bLoyal Customer-Facing POS Snippet™️:

• Name: Clear bLoyal Customer-Facing Snippet
• Customer Display URL: Use the following structure for the URL: https://bloyal.com

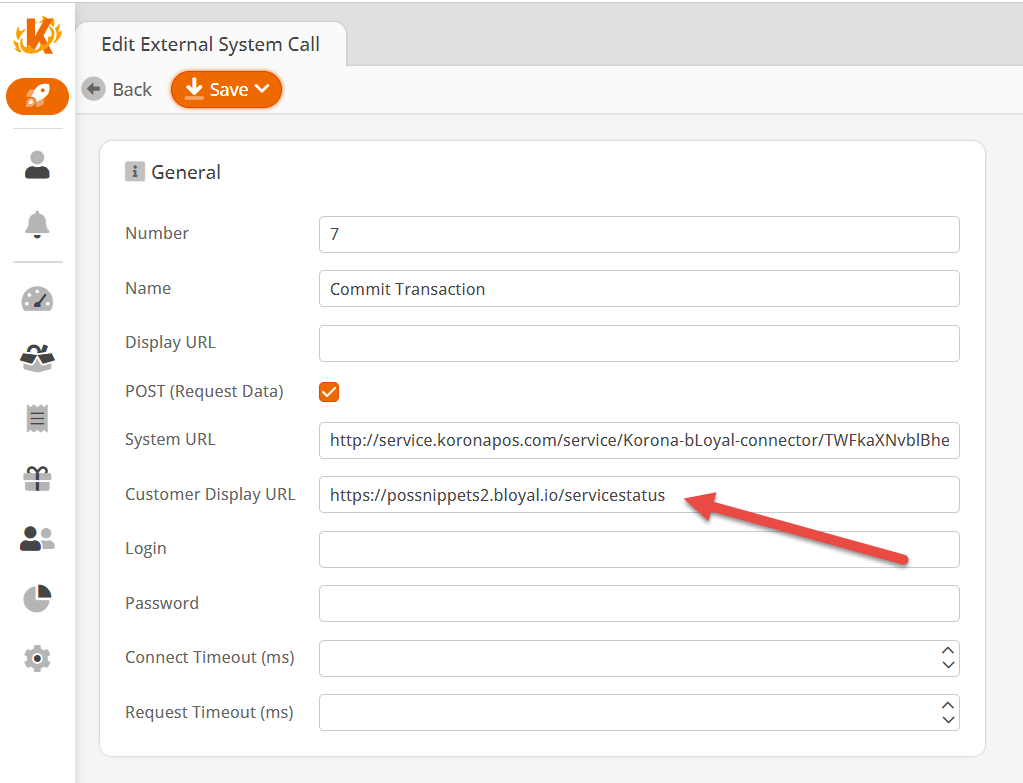

2) Edit the existing bLoyal Commit Transaction system call. In the Customer Display URL box add the following URL:

https://{POSSnippetsUrl}.bloyal.io/servicestatus

3) Add the new Customer Facing external system call to the POS profile.

1.

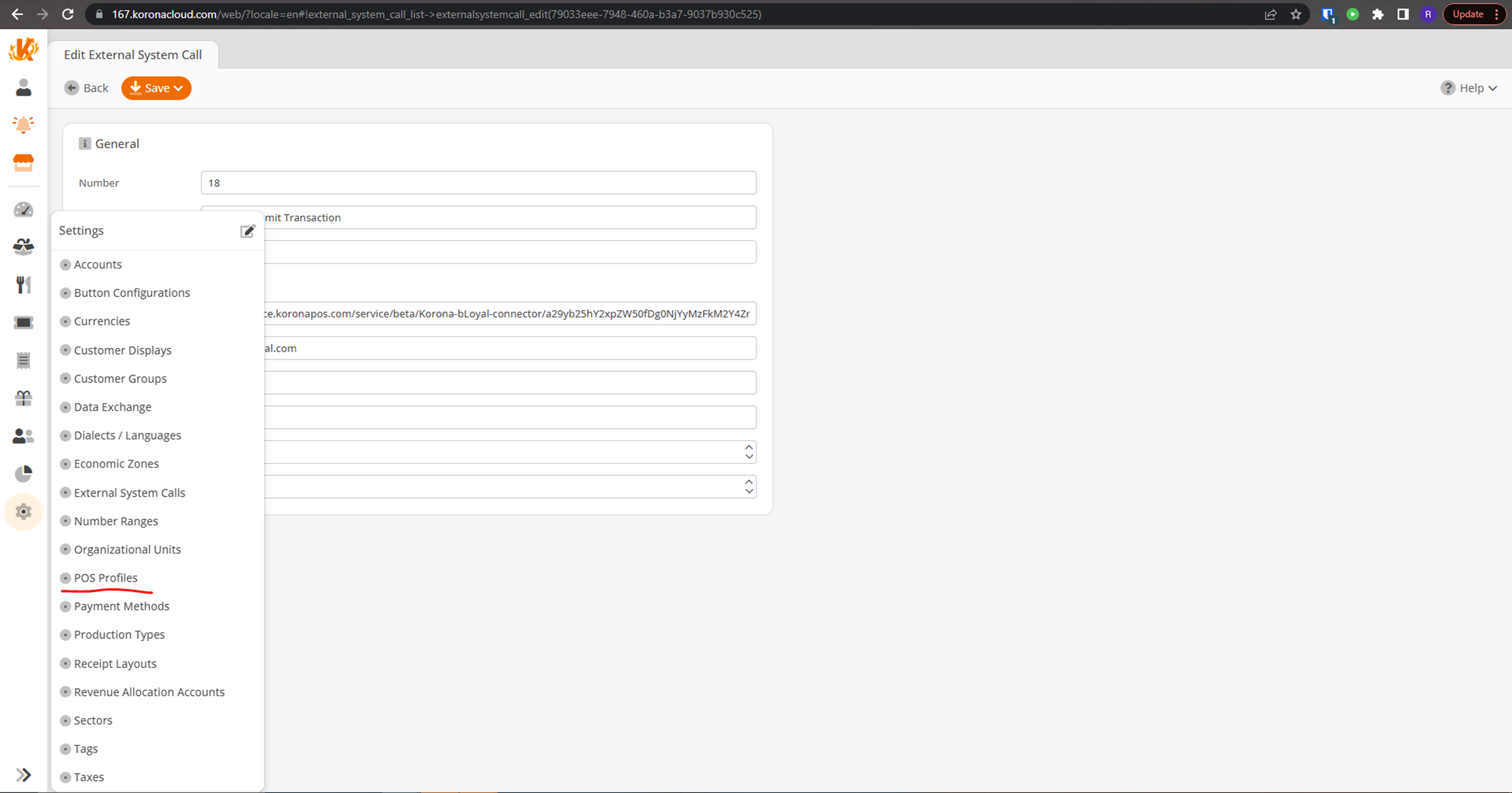

   • Go to the Settings => POS Profiles page:

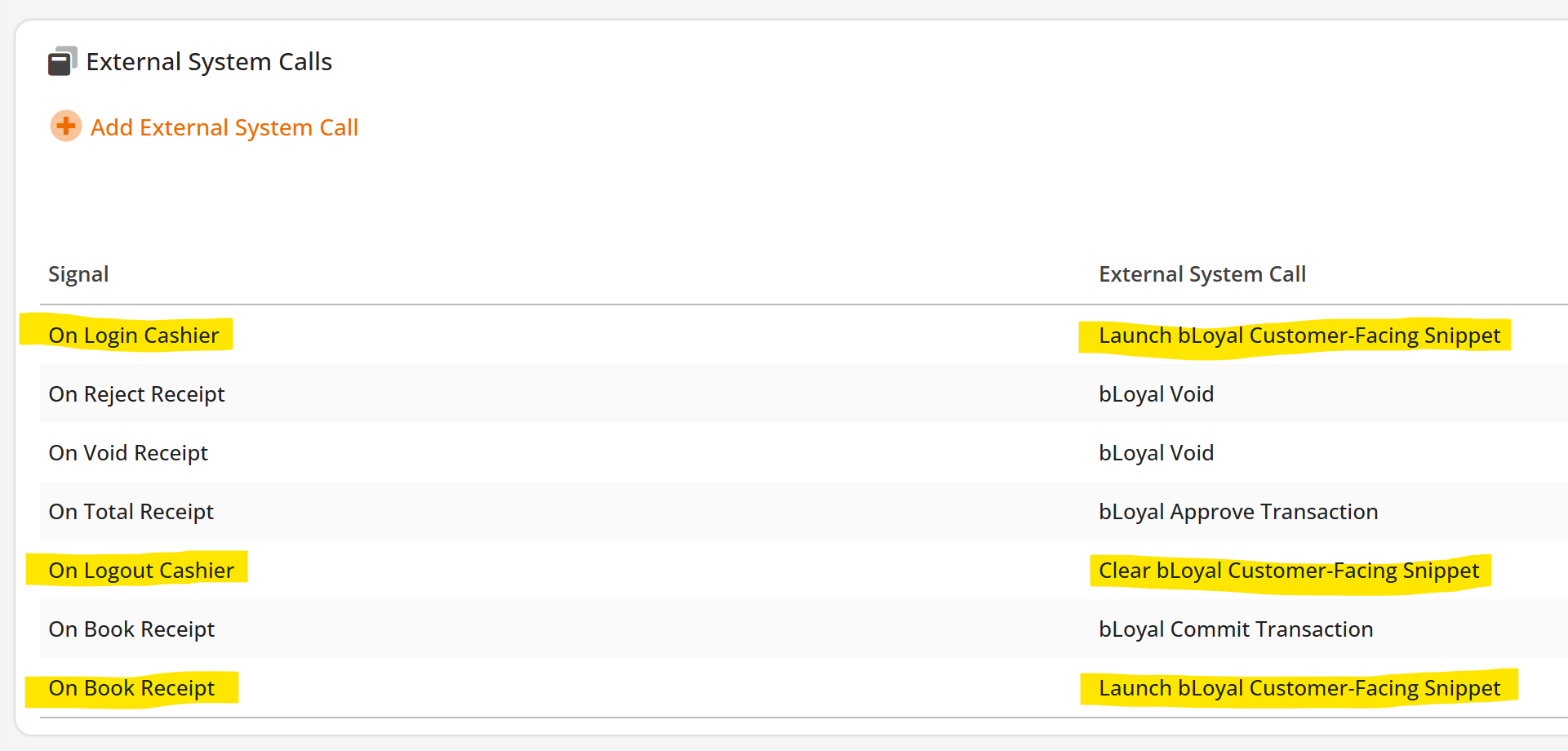

1. • Select your POS Profile. Scroll down to the External System Calls and add the new bLoyal External calls in the specific Orders shown below.

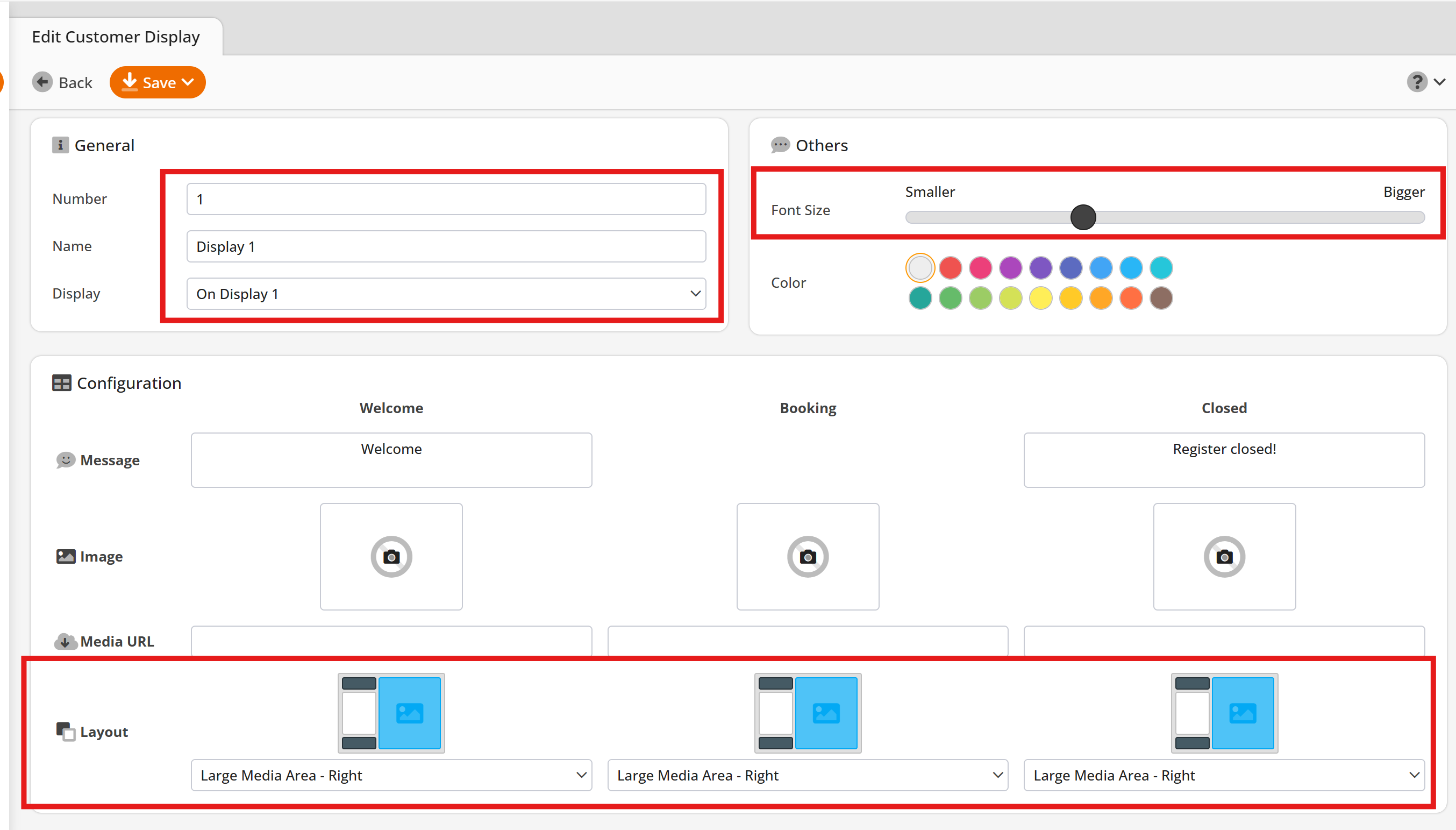

4) Complete your Customer Display settings

Suggested to be configured as shown below,

• Feel free to tweak the font settings as desired.
• For Windows based systems: The "On Display 1" should be selected
• For Linux based systems: The "On Display 2" should be selected as there is normally a dedicated second monitor for the customer display, so the 'display 2' indicates this should appear on that dedicated monitor.

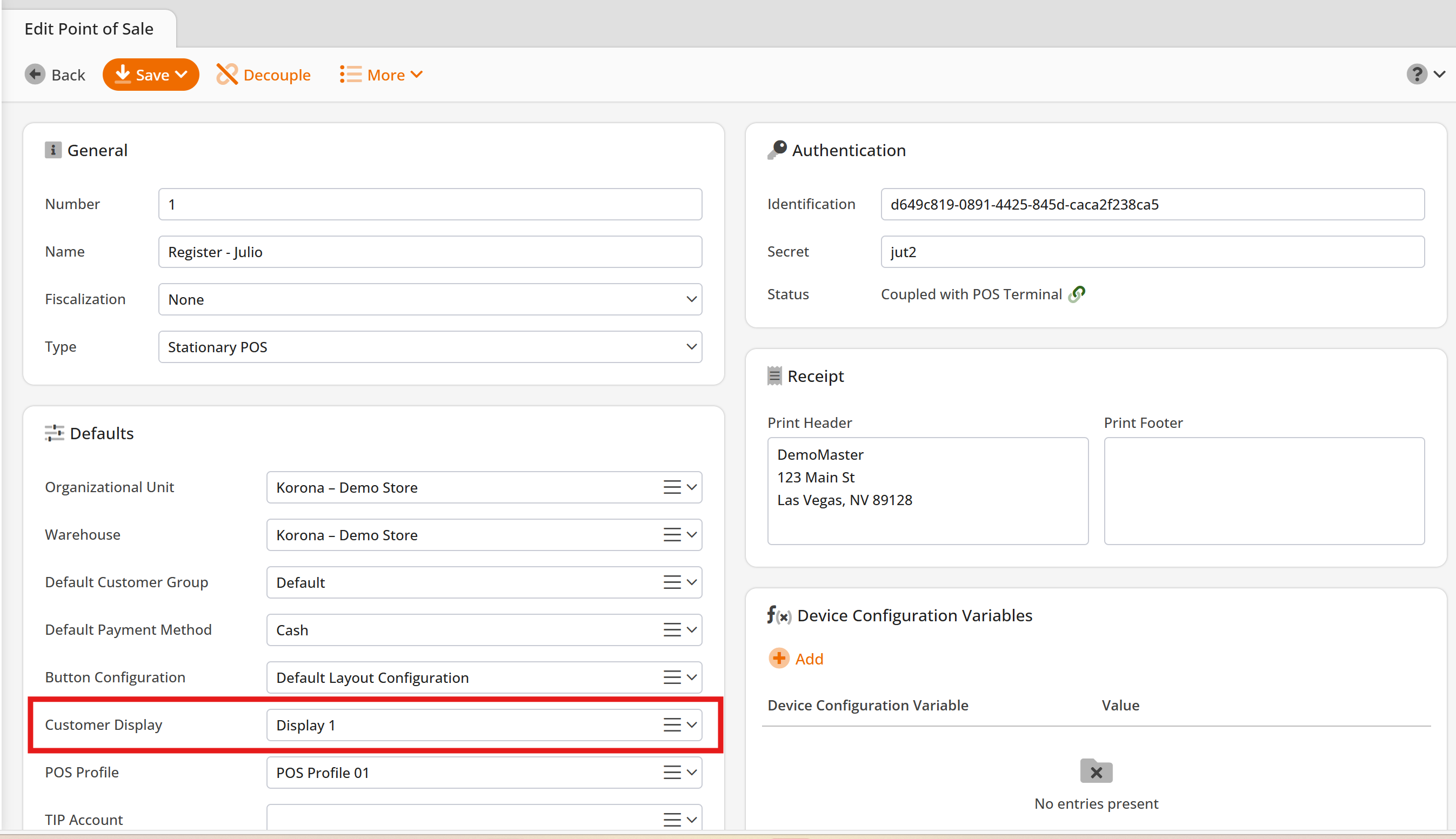

5) Add the appropriate Customer Display to your POS Profile

If you have any questions, please contact our Support Team for assistance.
